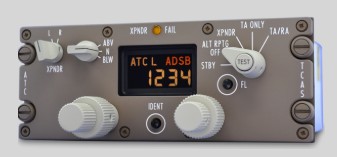

Installation of Gables ATC/TCAS Control Panel - PN G6992-242 (ADS-B)
Overview
Introduction
This Change provides instructions to replace existing ATC/TCAS control panel with ATC/TCAS control panel P/N G6992-242 manufactured by Gables. The new Gables panel introduces the following additional functions for the ATC and ADS-B out system:
- ADS-B (Automatic Dependent Surveillance Broadcast) Fail Annunciator – When the GPS system fails, an open input causes the ADSB fault annunciator to illuminate for the L or R transponder only if selected active. This input is directly controlled by the transponder.
- FL (Flight level) Button – Press to momentarily see absolute altitude on the TCAS display.
- Flight ID – previously entered thru the old control panel, but now it must be entered at the FMC MCDU.
Your needs
ATC/TCAS Control Panel that support ADS-B Out.
Your benefits
ATC/TCAS Control Panel that support ADS-B Out.
Boeing 757
€ RFQ
Boeing 767
€ RFQ
Product Description
This Change provides instructions to replace existing ATC/TCAS control panel with ATC/TCAS control panel P/N G6992-242 manufactured by Gables. The new Gables panel introduces the following additional functions for the ATC and ADS-B out system:
- ADS-B (Automatic Dependent Surveillance Broadcast) Fail Annunciator – When the GPS system fails, an open input causes the ADSB fault annunciator to illuminate for the L or R transponder only if selected active. This input is directly controlled by the transponder.
- FL (Flight level) Button – Press to momentarily see absolute altitude on the TCAS display.
- Flight ID – previously entered thru the old control panel, but now it must be entered at the FMC MCDU.
Your benefits
ATC/TCAS Control Panel that support ADS-B Out.
